Compact-Mount Safety Showers

Space-Saving Safety Showers for Wall, Ceiling, Over-Door & Ring Main Installations

In environments where floor space is limited or layouts are restrictive, safety equipment must adapt—without compromising performance. Sava’s Compact-Mount Safety Showers are engineered for flexibility, offering a range of mounting configurations to fit your facility while maintaining full compliance with international safety standards.

These showers are designed for indoor and covered environments throughout the UAE, Saudi Arabia, and the wider Gulf region, delivering fast-response protection in small or complex spaces.

Please note: These units do not include eye or face wash functionality.

Mounting Options to Fit Any Site

We offer four distinct mounting types to accommodate site-specific requirements:

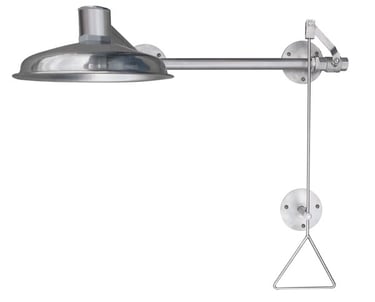

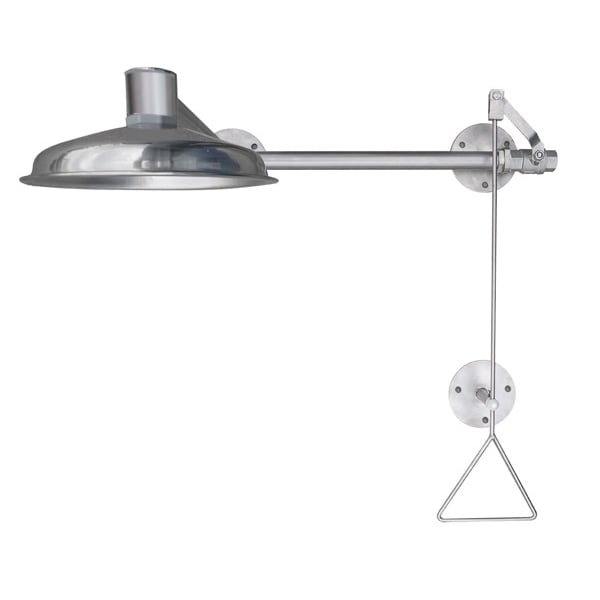

Wall-Mounted

Ideal for tight corridors or plant rooms
Anchors directly to walls

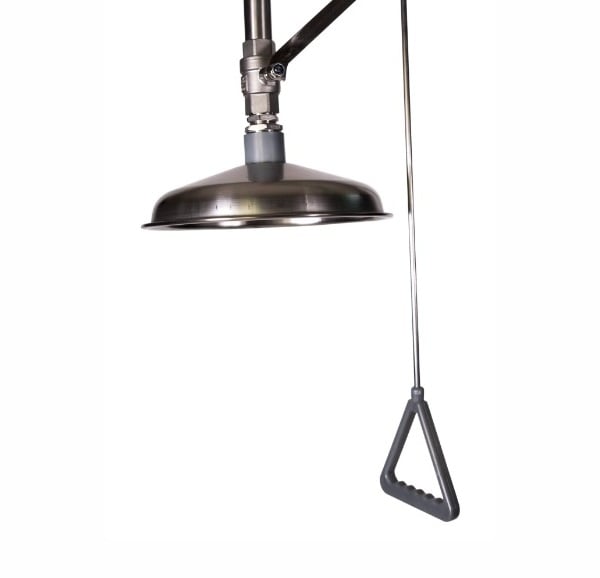

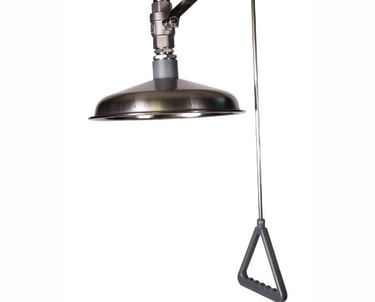

Ceiling-Mounted

Suspended from above to eliminate floor obstruction
Perfect for areas with limited wall access

Ring Main Mounted

Connects directly to circulating water lines
Designed for large industrial washdown systems

Over-Door Mounted

Installed directly above doorways in hazardous zones
Provides emergency rinsing as personnel exit contaminated areas

Each version delivers the same high-performance safety shower function—activated in under one second via pull rod or panic bar.

Key Features

Fast Activation: 1-second response with pull rod mechanism
Compliant Flow Rate: Minimum 76 L/min (20 GPM)
Minimal Footprint: Designed for vertical or lateral surface installation
Material Options: Galvanised steel with powder coating or stainless steel
Custom Signage Available: English/Arabic dual-language signs included

Where to Use These Units

Sava compact-mount safety showers are ideal for:

Laboratories and confined industrial rooms
Warehouses or service corridors
Loading bays or maintenance garages
Clean zones in manufacturing or chemical plants
Retrofit safety upgrades where space is limited

Do you need a solution that covers eye and face hazards? Explore our range of eyewashes

Eye Face Wash

Portable Eyewash

Technical Specifications

Mounting

Wall, Ceiling, Ring Main, Over Door

Shower Flow Rate

≥ 76 L/min (20 GPM)

Water Supply Pressure

2-6 Bar recommended

Activation

Pull rod (1-second activation)

Datasheet

IMOI

Drainage

Surface flow

Pipework

Stainless Steel options

Eyewash

Not available on these models

All units come with high-visibility signage and are compatible with foot treadles, alarms, and additional safety accessories.

Installation & Support

Installed by our UAE-based technical team, these compact systems are often favoured by EPC contractors, HSE teams, and facilities managers seeking:
